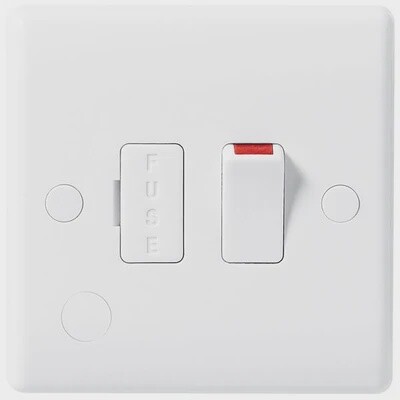

BG 851 White Nexus Moulded Switched 13A, DP, Fused Connection Unit with Flex Outlet

This 13A fused and switched connection unit provides an outlet from the mains containing the fuse, ideal for spur circuits and hardwired appliances.

The backplate has an optional flex outlet with removable blanking piece at the lower edge, and a reversible cord-grip.
This unit has a high resistance to fading, discolouration and scratches, with anti-microbial properties proven to reduce bacterial development and inhibit the growth of of infectious diseases.
Finished with softly rounded edges and screw caps for a sleek appearance.

Technical Details

• Colour: White
• Current Rating: 13A
• Dimensions: (H)86 mm x (W)86 mm
• Voltage Rating 230V
• Double pole
• Terminal Capacity Earth 1 x 6.0

• Terminal Capacity Live Neutral 3 x 2.5 2 x 4.0

More Details

• Easy to install, supplied with fixing screws and installation instructions
• Ideal for spur circuits and hard wired power appliances
• Angled colour coded terminals for ease of installation
• Integrated flex outlet has a cord grip in the lower edge with a removable knockout
• Captive screws prevent screw loss
• Screw covers for sleek appearance
• Embossed with 'Fuse' on the fuse cover
• Fits 25mm box, ideal for quick and easy retro-fit
• Manufactured using high grade thermoset Urea with inherent anti-microbial properties
• Anti-microbial certified - inhibits 99% of bacterial growth on touch point surfaces from infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
