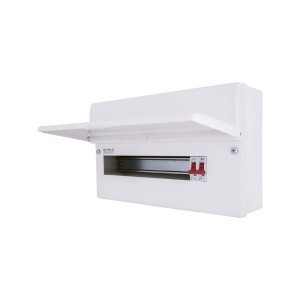

BG CFUDP16606 12 Module 6 Way Populated + 100A Switch, 2x63A 30mA RCD & 6xMCBs

Features of the Consumer Units range

• Lockable cover option available
• Easy access of cables via knockouts, in sides top and bottom, plus additional rear entry knockouts
• Spirit level, to enable quick installation
• Backed-out and retained terminal screws, prevents loss of screws, and saves on installation time

Dual RCD Consumer Units - Populated
Allows the installer to split the consumers power needs across two 30mA RCD’s, for example lighting and sockets circuits.

This item is 6 Way with 100A Switch, 2 x 63A 30mA RCD, 6x MCB's

Features

• Dual RCD Consumer Unit
• Populated
• Qty of MCBs: 6
• B Curve MCBs Included: 6Ax2, 16A, 32Ax2, 40A
• All metal unit, manufactured from stainless steel
• Metal units supplied with Ø20mm and Ø32mm knockouts
• Supplied complete with MCBs fitted
• Dual RCD units supplied with optional High Integrity as standard
• Each consumer unit supplied with spare cover blanks
• Terminal and busbar design provide maximum flexibility for combination of protected or unprotected circuits
• Lockable covers also available
• Integrated spirit level
• Bottom hinged visor
• White gloss finish

Circuit Protection Range Leaflet:
